Furnaces on the market today are more efficient and offer better heating throughout your entire home. Find the right level of efficiency for your home, see if the Carrier 59TN6 Gas Furnace is right for you!

Best
buy

Overview

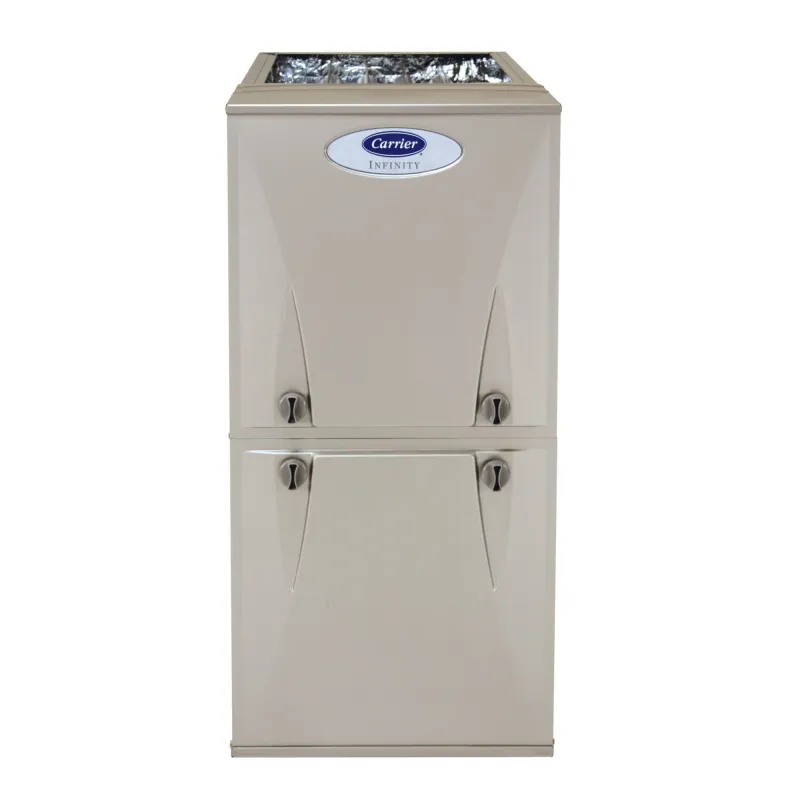

The Infinity Series model 59TN6 by Carrier is the best 95-96% gas furnace on the market.  It is supported by the intelligent Infinity control and uses a variable-speed blower, which allows the furnace to run in the lowest stage up to 90% of the time.  This offers improved energy efficiency, even temperatures, and an increased coziness.  The unit operates quietly and can assist cooling systems to improve energy efficiency in the summer and improve dehumidification.

EFFICIENCY: 96.7% AFUE

QUIET LEVEL: Best

COMFORT FEATURES: Best

VIEW CONSUMER BROCHURE

Features

PRODUCT FEATURES

STANDARD FEATURES



  • – Heating Efficiency: 96.7% AFUE
  • – Operation: economical two stage heat
  • – Comfort & Quiet: Top in class electrical efficiency with ECM blower motor and variable speed for unbeatable comfort
  • – Humidity control: Ideal Humidity System® with high-quality summer dehumidification, heat pump aid paired with SmartEvap™ for cooling dehumidification
  • – Fan Speed: equipped with ComfortFan™ allowing user control speed during “constant on” mode
  • – Heating Cycles enhanced with Comfort Heat Technology®, improving efficiency and controlling temperature swings
  • – Troubleshooting capabilities with Infinity intelligence self-configuration availability
  • – Insulation in cabinet with highly advanced temperature controls and in cabinet air filter
  • – Limited warranty on parts: 10-years
  • – Lifetime warranty on heat exchanger



OPTIONAL FEATURES



  • – Additional warranty available for labor

Specifications

PRODUCT SPECIFICATIONS

EFFICIENCY



  • – 96.7% AFUE
  • Energy Star qualified
  • Top Carrier furnace for electrical efficiency

PERFORMANCE



  • – Energy efficient operation with low stage options up to 90% of time for quiet operations
  • – Fan speed provides up to 4 options during “constant on” mode
  • – Fully compatible with Hybrid Heat® technology
  • – Control system providing best dehumidification year-round as part of complete Infinity system
  • – SEER efficiency boosting with variable-speed blower matched up with cooling system components

TECHNOLOGY



  • – Gas valve option with two stages
  • – Motors include two-speed inducer along with a variable-speed, ECM blower motor equipped with variable speed technology
  • – Ignition equipped with PowerHeat technology, pilot-free
  • – Heat exchanger reinforced with steel clamshell
  • – Noise reduction complete with cabinet insulation and QuieTech™ option
  • – Advanced diagnostic intelligence provided by Infinity
  • – Control Mechanism: Infinity control

CAPACITIES



  • – 60,000  to 120,000 Btu per hour

REQUIREMENTS



  • – 115 volts
  • – 1/2 inch gas connection
  • – Liquid Propane option for conversion

INSTALLATION



  • – Up, down or horizontal flow flexible installation
  • – Venting options include versatile tight-fit applications



AESTHETICS



  • – Galvanized steel finish, 20-gauge
  • – Urethane base with polyester to coat paired with taupe metallic paint
